What a Thorough Two-Hour HVAC Diagnostic Looks Like Compared to a Quick Look

The Late-Summer AC Struggle: Is a Quick Fix Enough?

In our years serving Basehor and the Kansas City metro area, a pattern we see often is the misconception that a struggling air conditioner just needs a quick "freon top-off" to get back to peak performance. What a Thorough Two-Hour HVAC Diagnostic Looks Like Compared to a Quick Look is drastically different from the 15-minute visits that treat only the surface symptoms. When you are deep into the August late-summer cooling season, your air conditioning system has already endured hundreds of hours of relentless operation. If it starts blowing warm air, making strange noises, or running constantly without cooling the house, a superficial check simply will not uncover the real root of the problem. To protect your investment and ensure your home stays comfortable during the back-to-school transition, relying on comprehensive HVAC services is the smartest path forward. Rather than settling for guesswork, you should schedule a thorough HVAC diagnostic to get factual, measurement-based answers from our experienced team.

The Hidden Dangers of the 15-Minute 'Quick Look'

When a technician arrives and spends only 15 to 30 minutes looking at your system, they are performing a "quick look." This typically involves a brief visual inspection, bumping the thermostat down a few degrees to see if the unit turns on, and making symptom-based guesses. While this approach might temporarily get the cold air flowing again, our team frequently sees it miss the underlying causes of the breakdown, treating the symptom rather than the disease.

The anatomy of a rushed diagnostic visit usually follows these steps:

1. The superficial visual check: The technician looks for obvious signs of damage, like a frozen coil or a completely dead thermostat, but skips testing the internal components.

2. Symptom-based guesswork: If the system is low on refrigerant, they might just add more without actually locating and repairing the leak.

3. The band-aid fix trap: You pay for a temporary repair that fails shortly after the technician leaves, leaving you right back where you started.

4. Overlooking prior bad work: Rushed visits often miss incorrect wiring or poor previous repairs that continue to strain the system behind the scenes.

Real-world examples highlight why taking the time matters. Recently, our team at Delta T Heating & Cooling responded to a local Basehor homeowner during a late-summer hot weather stretch. Their AC had stopped working completely. It turned out a previous company had wired the system incorrectly. Because our responding technician took the time to conduct a real diagnostic during that same-day emergency call, we identified the faulty wiring, ordered the correct part, and properly repaired the system so it was ready for regular maintenance. A quick 15-minute look would have likely missed the electrical root cause entirely.

Refrigerant Realities: Why Gauges Aren't Enough

One of the most critical differences between a rushed visit and a comprehensive evaluation involves how the technician tests your system's refrigerant. A quick look usually relies on a simple gauge pressure check. The technician hooks up their manifold gauges, looks at the pressure reading, and decides whether to add refrigerant. However, pressure alone does not tell the whole story of your air conditioner's health.

In our experience, proper verification requires specific measurements, specifically calculating refrigerant subcooling and superheat. Our technicians know these measurements require letting the system run for at least 15 to 20 minutes to stabilize before accurate readings can even be taken. Without this stabilization time, any adjustments made to the refrigerant levels are purely guesswork. An accurate diagnostic protects the compressor from long-term damage and ensures optimal efficiency, which is a great way to recognize an unnecessary HVAC upsell disguised as a "quick fix."

Understanding the Science of Cooling

To truly understand the health of the cooling cycle, technicians must translate technical readings into a clear picture of system performance. Subcooling measures the liquid refrigerant leaving the outdoor condenser coil. If the subcooling is incorrect, it indicates that the refrigerant is not condensing properly, which could point to a failing metering device or an overcharged system. Superheat measures the vapor leaving the indoor evaporator coil. Incorrect superheat often signals airflow issues or a system that is starved for refrigerant.

By taking the time to calculate both refrigerant subcooling and superheat, a professional technician can pinpoint exactly where the refrigeration cycle is failing, rather than just blindly adding more gas to the system.

Electrical and Airflow Audits: Catching Fatigue Early

An HVAC system is heavily reliant on precise airflow and robust electrical components. During the August late-summer cooling season, these components are pushed to their absolute limits. A thorough diagnostic involves extensive electrical and airflow audits that go far beyond just checking to see if the fan is spinning.

Our technicians measure the blower motor amp draw to identify impending failure long before the component actually seizes. Every motor has a specific amperage rating; if it is drawing more power than it should, the motor is working too hard and is likely on its way out. We find that catching this early prevents a sudden breakdown on a 100-degree afternoon.

A comprehensive air conditioning system evaluation also includes testing capacitors, contactors, and the overall integrity of the wiring under a heavy load. Capacitors are tested for their microfarad readings to ensure they can still deliver the necessary jolt of energy to start the compressor.

Airflow is equally critical. A technician performing a quick look might just hold their hand over a vent to feel for cold air. A thorough diagnostic uses specialized tools to measure static pressure and temperature drops across the indoor coil. Verifying correct airflow prevents freezing coils, reduces compressor strain, and ensures that every room in your house receives the right amount of conditioned air.

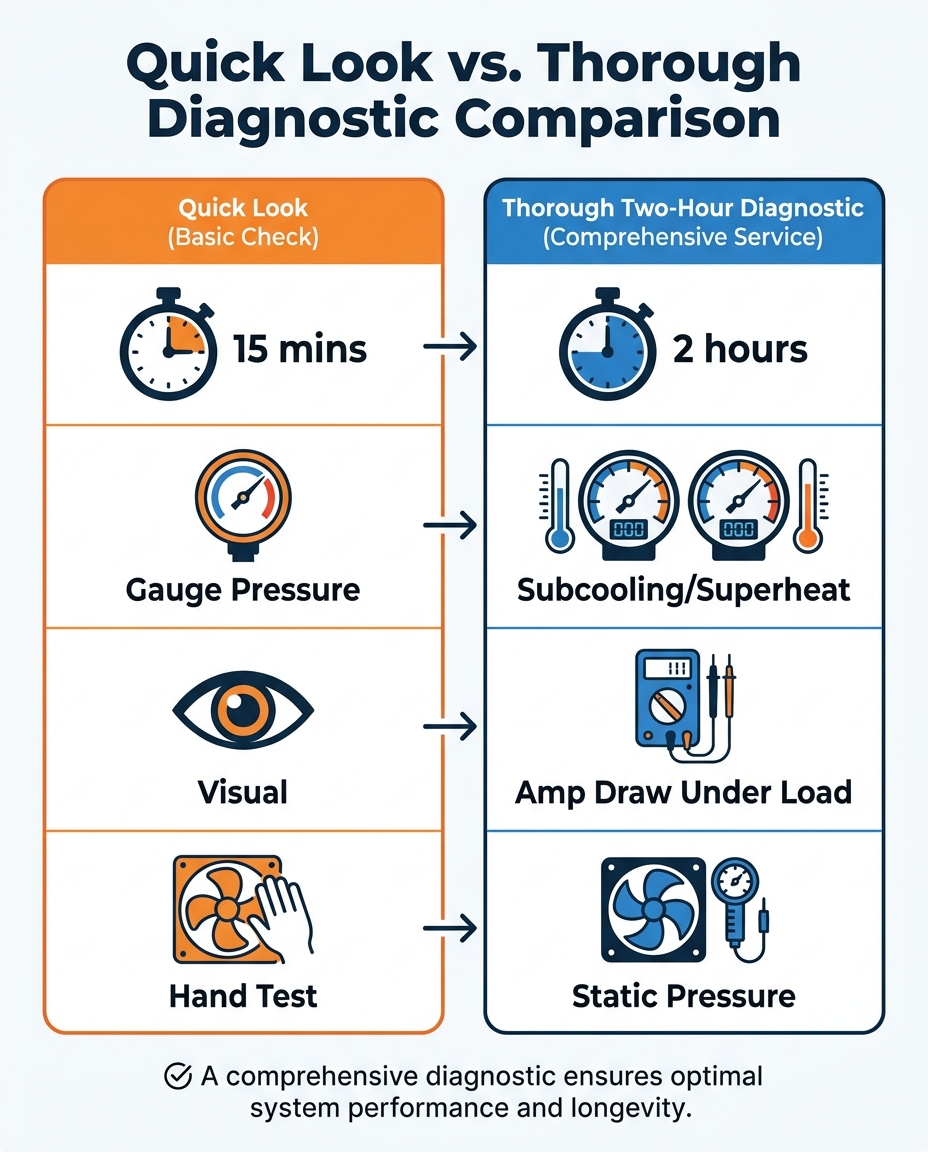

Side-by-Side: Quick Look vs. Thorough Diagnostic

To clearly see the difference between these two approaches, it helps to look at the specific tasks performed during each type of visit. The table below breaks down exactly what you are getting when our technicians spend two hours on your system versus someone rushing through in 15 minutes.

• Time on Site — 15-Minute "Quick Look": 15 to 30 minutes — 2-Hour Thorough Diagnostic: 1.5 to 2 hours

• Refrigerant Check — 15-Minute "Quick Look": Basic gauge pressure reading — 2-Hour Thorough Diagnostic: Precise refrigerant subcooling and superheat calculations

• Electrical Check — 15-Minute "Quick Look": Visual inspection only — 2-Hour Thorough Diagnostic: Testing components under load, measuring amp draw

• Airflow Check — 15-Minute "Quick Look": Hand over the vent test — 2-Hour Thorough Diagnostic: Static pressure and temperature drop measurements

• Outcome — 15-Minute "Quick Look": Guesswork and temporary band-aids — 2-Hour Thorough Diagnostic: Factual, data-driven long-term solutions

Preventing Cascading Failures in Extreme Weather

The concept of a cascading failure is simple: when one struggling component forces others to work harder, the entire system eventually shuts down. In the HVAC world, this often starts with a minor issue, like restricted airflow or a weak capacitor, and ends with a catastrophic compressor failure.

The extreme temperature swings and high humidity of the Basehor and Kansas City metro area cause severe hidden electrical and airflow stress by late August. Prolonged high heat puts maximum strain on electrical components. When a capacitor begins to fail, the compressor draws more amps to start up. This increased heat degrades the compressor windings over time. A thorough diagnostic uncovers these progressive problems that might have been developing over months or even years, stopping the domino effect before it ruins the most expensive parts of your system.

Extreme events also require meticulous diagnostics rather than quick guesses. For example, our crew helped a homeowner who faced a severe situation when their furnace and water heater were submerged by a water main break. Upon power restoration, a quick visual check would have been dangerous. We performed a detailed, thorough diagnostic to safely assess the damage, which ultimately led to the safe installation of new units two days later.

Catching these progressive issues during the late-summer cooling season does more than just keep you comfortable today as the kids head back to school; it also ensures that your system is prepared for the upcoming seasonal transition, making your next heating performance check much smoother.

The Value of a Comprehensive System Audit

The "why" behind the time spent on site is simple: it is an investment in long-term reliability and cost savings. Delta T Heating & Cooling's commitment to comprehensive, multi-point system audits by dedicated technicians ensures that every aspect of your HVAC system is evaluated. This honest, data-driven approach stands in stark contrast to rushed visits that fail to provide complete answers.

Our dedicated technicians do not just fix the immediate symptom; they investigate the entire system to ensure the repair will hold. Another of our customers recently noted that when their AC needed fixing, our technician did not just stop at the initial repair. We were thorough, double-checked everything across the system, and followed up afterward to ensure the AC was still working smoothly. That level of dedication provides true peace of mind.

Ultimately, a proper audit provides you with factual data. When you know the exact blower motor amp draw and the precise refrigerant subcooling and superheat numbers, you can make informed repair decisions based on science, not guesswork.

Frequently Asked Questions About HVAC Diagnostics

How long should an AC diagnostic take?

We typically find that a proper AC diagnostic takes between 1.5 and 2 hours to complete. This timeframe allows the technician to let the system run and stabilize so they can capture accurate temperature and pressure readings. Rushing this process in 15 to 30 minutes usually results in missed underlying issues and temporary band-aid fixes.

What does an HVAC technician check during a diagnostic?

During a thorough diagnostic, our technicians check the complete refrigeration cycle, electrical components under load, and system airflow. This includes calculating refrigerant subcooling and superheat, measuring blower motor amp draw, testing capacitor microfarads, and taking static pressure readings. We evaluate the entire system to find the root cause of the failure.

Why is my AC diagnostic taking so long?

If your AC diagnostic is taking an hour or more, it means the technician is doing their job correctly. Air conditioning systems require time to equalize pressures and temperatures before accurate measurements can be taken. A longer diagnostic ensures that hidden electrical fatigue and airflow restrictions are uncovered before they cause a larger breakdown.

Is an AC tune-up the same as a diagnostic?

No, an AC tune-up is proactive maintenance designed to clean and calibrate a working system, while a diagnostic is a reactive investigation to find out why a system is failing. A tune-up helps prevent breakdowns, whereas a diagnostic uses specific testing tools to pinpoint a broken or stressed component so it can be properly repaired.

Can a quick freon top-off fix my AC problems?

A quick freon top-off is rarely a permanent fix and often masks a larger problem. Air conditioners do not consume refrigerant; if the system is low, there is a leak that needs to be located and repaired. Simply adding more refrigerant without calculating subcooling and superheat can actually damage your compressor over time.

Make an Informed Decision for Your Home's Comfort

True peace of mind comes from factual, measurement-based diagnostics, not rushed symptom checks. Knowing exactly what measurements happen during a proper two-hour diagnostic—from verifying refrigerant subcooling and superheat to checking the blower motor amp draw—empowers you to protect your home comfort investment. Don't settle for a 15-minute quick look that leaves the root cause of your August late-summer cooling season struggles completely untouched. Demand a thorough evaluation that uncovers hidden wear and tear before it leads to a cascading failure. If you want to ensure your system is accurately assessed and reliably repaired, take the time to schedule a thorough diagnostic with our dedicated professionals at Delta T Heating & Cooling.
