How to Fix Circuit Breaker Tripping When AC Turns On

What to Do When Your AC Trips the Circuit Breaker

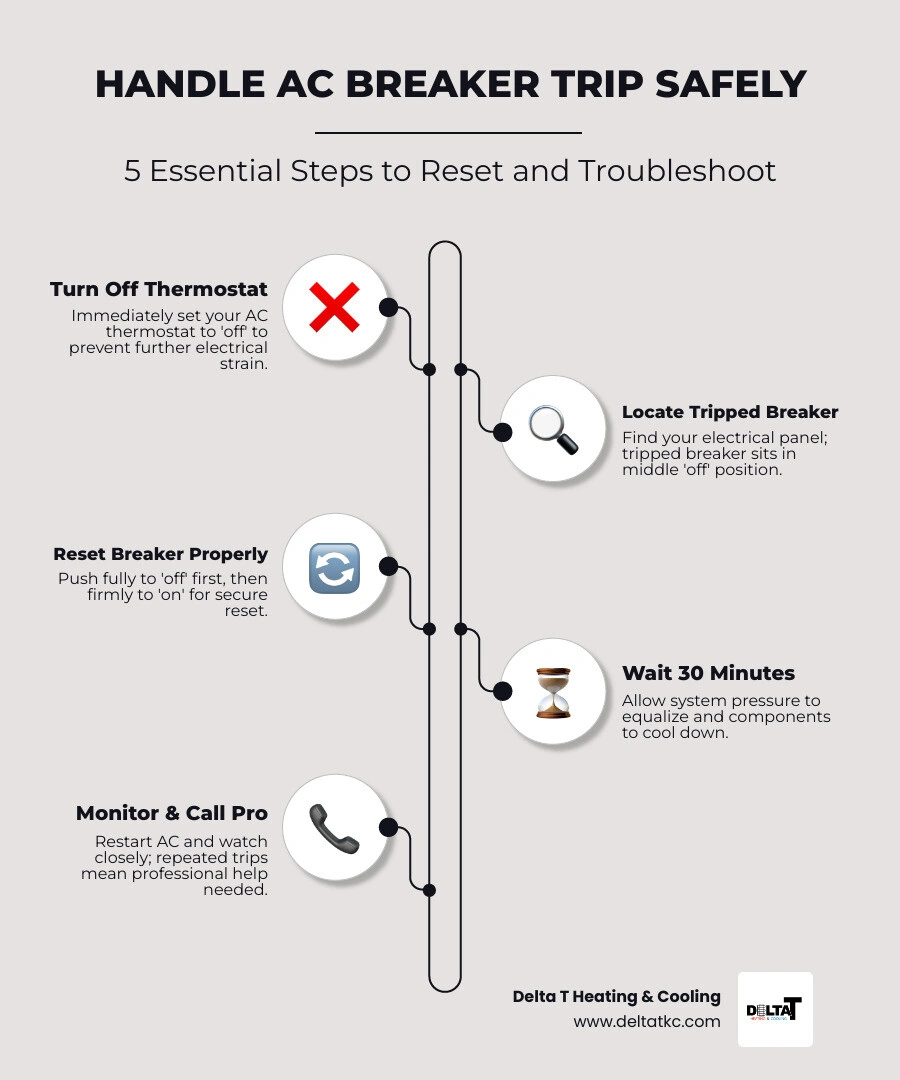

If you're dealing with a circuit breaker tripping when AC turns on, what to do first is straightforward:

1. Turn off your AC at the thermostat before touching anything else.
2. Locate your electrical panel and find the tripped breaker (it will be in the middle or "off" position).
3. Push the breaker fully to "off" then firmly flip it back to "on."
4. Wait 30 minutes before restarting your AC — this lets the system pressure equalize and internal components reset.
5. Monitor the system closely. If the breaker trips again, stop resetting it and call an HVAC professional.

It's a hot summer afternoon in Johnson County, and your AC kicks on — then everything goes quiet. The breaker has tripped again. It's frustrating, and it can feel alarming, especially when you're not sure if it's a quick fix or a sign of something more serious. The truth is, a tripping breaker is your home's electrical system doing exactly what it's designed to do: protecting your home from overheating wires, damaged equipment, and potential fire hazards. But when it keeps happening, there's an underlying cause that needs attention — and ignoring it can turn a minor problem into a costly repair or safety risk.

Understanding Why Your AC Trips the Breaker

Think of your circuit breaker as a vigilant safety switch. Its only job is to monitor the flow of electricity. If the current gets too strong—meaning the air conditioner is trying to "suck" more power through the "straw" than the wires can handle—the breaker snaps shut to prevent the wires from melting or starting a fire.

As we move through May 2026, many homeowners in Kansas City are firing up their units for the first time this season. When that breaker trips, it’s usually due to one of three main electrical events:

• Electrical Overload: This is like trying to run a marathon while breathing through a tiny straw. If your AC is working too hard (perhaps due to dirt or mechanical strain), it draws more amps than the circuit is rated for.
• Short Circuit: This happens when an active electrical wire touches a neutral wire. It creates a sudden, massive surge of energy that the breaker must stop immediately. This is often caused by rodent damage or frayed wires inside the unit.
• Ground Fault: Similar to a short circuit, this occurs when an active wire touches a grounded part of the system, like the metal casing of the unit. This is especially dangerous as it can energize the entire exterior of the AC.

Understanding these reasons AC circuit breaker keeps tripping is the first step in staying safe. According to the National Fire Protection Association (NFPA), electrical malfunctions are a leading cause of home fires, so we always treat a tripping breaker as "useful information" rather than an annoyance. You can learn more about the basic mechanics of these trips at CircuitFixer.

Common Causes for Circuit Breaker Tripping When AC Turns On What to Do

When your cooling system fails, it’s often because a specific part is struggling. If your AC trips the breaker only after it has been running for a while, it’s likely an overload caused by poor maintenance.

Troubleshooting a Circuit Breaker Tripping When AC Turns On What to Do

The most common culprit we see in places like Lenexa and Shawnee is simple: airflow restriction. When air can't move freely through your system, the blower motor has to work twice as hard, which pulls more electricity.

• Dirty Air Filters: Imagine trying to run with a pillow over your face. That’s what a clogged filter does to your AC. It forces the motor to draw excessive current, eventually tripping the breaker. We recommend checking your filter monthly.
• Dirty Condenser Coils: Your outdoor unit dissipates heat. If those coils are covered in dirt, grass clippings, or spider webs, the unit can’t release heat efficiently. This causes the system to run hotter and longer, eventually overloading the circuit.
• Refrigerant Leaks: If your system is low on "juice," it has to run longer to reach the temperature set on the thermostat. This constant operation can lead to overheating. If you see ice on the lines, this is a major red flag.

Identifying what are the reasons for AC repair early can save you from a complete system shutdown. For more on how these physical blocks affect electrical draw, check out this guide on window and central AC trips.

Identifying Electrical Faults and Component Failures

If the trip happens the very second the unit tries to start, you’re likely looking at a component failure.

• Failing Capacitor: The capacitor is like a big battery that gives your AC the "kick-start" it needs to get the motor spinning. If it's weak or "blown," the motor will hum and struggle, drawing massive amounts of power until the breaker pops.
• Compressor Grounding: This is a serious issue where the motor windings inside the compressor break down and touch the side of the metal housing. This causes an immediate ground fault.
• Fan Motor Short: If the outdoor fan motor has a shorted winding, it will trip the breaker to prevent a fire.

These are among the most common AC repairs that we encounter in the Kansas City area. In newer homes with AFCI (Arc-Fault Circuit Interrupter) breakers, even a loose wire connection can cause a trip because these breakers are designed to detect "arcing" or sparking before it starts a fire. You can read more about why AFCI breakers trip to see if your modern panel is just being extra cautious.

How to Safely Reset a Tripped AC Breaker

If your breaker trips once, it might be a fluke—perhaps a power surge from a spring thunderstorm in Olathe. However, you must reset it safely to avoid damaging the compressor.

1. Thermostat First: Turn the AC to "Off" at the thermostat. You don't want the unit trying to draw power the exact millisecond you flip the switch.
2. The "Off-On" Maneuver: Go to your breaker panel. A tripped breaker usually sits in the middle—not fully off, not fully on. You must push it firmly to the "Off" position until you hear a click, then flip it back to "On."
3. The 30-Minute Rule: This is the most important step. Wait 30 minutes. This allows the refrigerant pressures to equalize. If you try to start a compressor against high pressure, it will draw a "hard start" surge that could trip the breaker again or damage the motor.
4. Restart and Watch: Turn the thermostat back to "Cool." If it trips again immediately or within the hour, do not reset it again. Repeatedly resetting a breaker can cause the wires to overheat and poses a significant fire risk.

For a detailed walkthrough on this process, T.Byrd HVAC offers a great safety-first guide.

Maintaining Your System for Long-Term Reliability

The best way to handle a circuit breaker tripping when AC turns on what to do is to prevent it from happening in the first place. Regular maintenance isn't just about keeping the air cold; it's about keeping the electrical load low.

Whether you need HVAC repair in Overland Park, KS or HVAC repair in Olathe, KS, keeping your system clean is the number one way to avoid electrical failures.

Preventing a Circuit Breaker Tripping When AC Turns On What to Do

Beyond cleaning, there are technical upgrades that can help older units survive the Kansas heat.

• Hard Start Kits: If your compressor is getting older, it might struggle to start. A hard start kit provides an extra electrical "jolt" to get it moving quickly, reducing the duration of the startup surge.
• Surge Protection: Installing a whole-home or unit-specific surge protector can save your sensitive control boards from lightning or grid fluctuations.
• Dedicated Circuits: Ensure your AC isn't sharing a circuit with other high-draw appliances like a microwave or hair dryer.

If you are experiencing frequent issues, scheduling AC repair in Kansas City, KS is the safest route to ensure your wiring is up to code and your system is running efficiently.

Frequently Asked Questions

Why does my AC trip the breaker immediately on startup versus after running?

If it trips immediately, you likely have a "hard" electrical fault, such as a short circuit, a grounded compressor, or a completely seized motor. The breaker is reacting to a massive surge of current. If it trips after running for 15-30 minutes, it’s usually an "overload." This means the system is getting too hot or working too hard, slowly building up heat in the breaker until it finally trips.

Is it safe to install a higher-amp breaker to stop my AC from tripping?

Absolutely not. This is a major fire hazard. The breaker is sized to protect the specific gauge (thickness) of the wire in your walls. If you install a 50-amp breaker on a wire only rated for 30 amps, the wire will melt and catch fire before the breaker ever trips. Always consult a professional to ensure your breaker and wire size match the manufacturer's "Max Overcurrent Protection" (MOCP) rating on the AC unit's nameplate.

Why does the breaker trip only during extreme heat or after a power surge?

Extreme heat makes the refrigerant pressure higher, which makes the compressor work harder and draw more amps. If your capacitor is already weak, the extra heat might be the "last straw." After a power surge, internal components like the capacitor or control board may be partially damaged, causing them to draw irregular power and trip the breaker as a safety precaution.

Conclusion

A circuit breaker tripping when AC turns on what to do is a signal you shouldn't ignore. While a one-time reset might get you through a temporary glitch, recurring trips are a cry for help from your cooling system. By keeping your filters clean, your outdoor unit clear of debris, and scheduling annual professional check-ups, you can keep your home cool and safe all summer long.
